Emergency frame tents come in three distinct construction types that dramatically affect insulation, weight, price, and suitability for different climates. Whether you need an emergency tent for rapid response or a relief tent for long-term camps, construction type is the most important purchasing decision. Many buyers confuse these structures and end up with tents that are either too hot, too cold, or overpriced for their needs. This guide breaks down every difference so you can choose the right construction for your project.

Quick answer: Single layer tents are lightweight and low-cost for warm climates; integrated 3-layer tents offer fixed insulation for cold regions; detachable 3-layer tents provide year-round versatility by allowing the insulated inner tent to be removed in summer. Detachable 3-layer is the most popular choice for organizations operating across multiple climate zones.

Table of Contents

Setup & Maintenance Price & Total Cost of Ownership Climate & Scenario Recommendations Customization Options Procurement Decision Guide Frequently Asked Questions Request a Proposal

30-Second Quick Verdict Core Difference Comparison Table Single Layer Frame Tents Integrated 3-Layer Frame Tents Detachable 3-Layer Frame Tents Insulation & Thermal Performance Weight, Shipping & Storage

30-Second Quick Verdict: Which Construction Should You Choose?

Different construction types exist because different disasters demand different things. An earthquake response needs fast setup on uneven ground. A long-term refugee camp needs durability above all. This comparison breaks down which frame type handles which scenario best, so you can match the tent to the mission.

Choose Single Layer if: You operate in tropical/subtropical climates, need maximum ventilation, have limited budget, or require the lightest possible tent for rapid deployment. Best for short-term emergency response in warm regions.

Choose Integrated 3-Layer if: You operate exclusively in cold or winter climates, need fixed insulation that cannot be misplaced, and want the simplest possible setup. Best for permanent winter camps and high-altitude locations.

Choose Detachable 3-Layer if: You need year-round versatility across multiple climate zones, want to use the outer tent alone in summer and add the insulated inner in winter, or need to replace damaged layers independently. This is the most popular choice for NGOs, military, and disaster relief organizations.

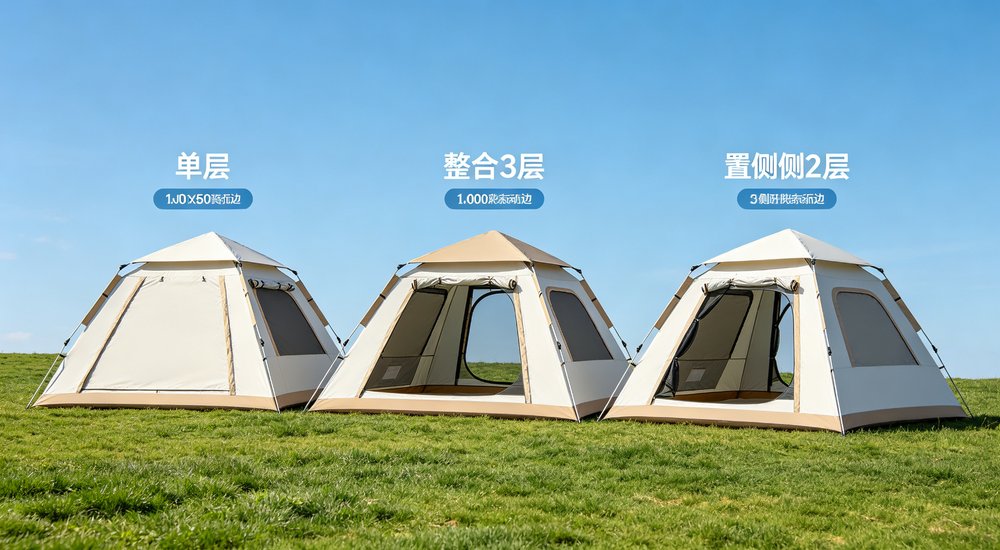

Core Difference Comparison Table

Feature	Single Layer	Integrated 3-Layer	Detachable 3-Layer
Construction	One fabric layer + steel frame	Outer + insulation + inner sewn together	Outer tent + separate insulated inner tent
Layers	1 layer (outer only)	3 layers fixed together	2 pieces (outer + insulated inner)
Insulation	None (fabric only)	Fixed 5-10mm foam/cotton batting	Removable 5-15mm insulation
R-Value (approx)	0.5-1.0	2.0-3.5	2.5-4.5 (with inner)
Weight (20m²)	35-45 kg	70-90 kg	80-100 kg (total)
Setup Time	15-20 min (2 people)	25-35 min (2 people)	30-45 min (2-3 people)
Price Range (20m²)	$250-$400	$450-$650	$500-$750
Best Climate	Warm/tropical	Cold/winter only	All seasons
Ventilation	Excellent	Limited (fixed layers)	Good (removable inner)
Layer Replacement	N/A	Whole tent must be replaced	Layers replaceable independently
Condensation Risk	Low	Medium (if not ventilated)	Low (air gap between layers)
Storage Volume	Small	Medium	Large (2 separate bags)

Reference wholesale pricing (FOB Shenzhen, 2026 guide). Actual quotation varies by raw material costs, order quantity, customization, and shipping. Contact us for firm pricing.

Terminology clarification: The industry uses inconsistent names for insulated tents. A single skin tent has only outer fabric with no insulation. A three layer (3-ply, "sandwich") tent means outer fabric + insulation layer + inner lining — three physical materials. Some suppliers call this "2-layer" because they treat outer-fabric-with-insulation as one composite piece, plus the inner lining as the second layer. Both terms refer to the same physical product. We use "3-layer" as it accurately describes the three material layers. "Single layer" = outer fabric only, no insulation, no inner lining.

Industry Terminology Reference Table

Supplier Terminology	Actual Physical Layers	Has Insulation?	Our Standard Name
Single layer / Single skin / 1-ply	1 (outer fabric only)	No	Single Layer
3-layer / 3-ply / Sandwich / "2-layer insulated"	3 (outer + insulation + inner)	Yes (fixed)	Integrated 3-Layer
Detachable 3-layer / Removable liner / 2-piece	3 (outer + insulated inner, separable)	Yes (removable)	Detachable 3-Layer
Winterized / Cold-proof / Thermal	3 (any insulated type)	Yes	Depends on construction

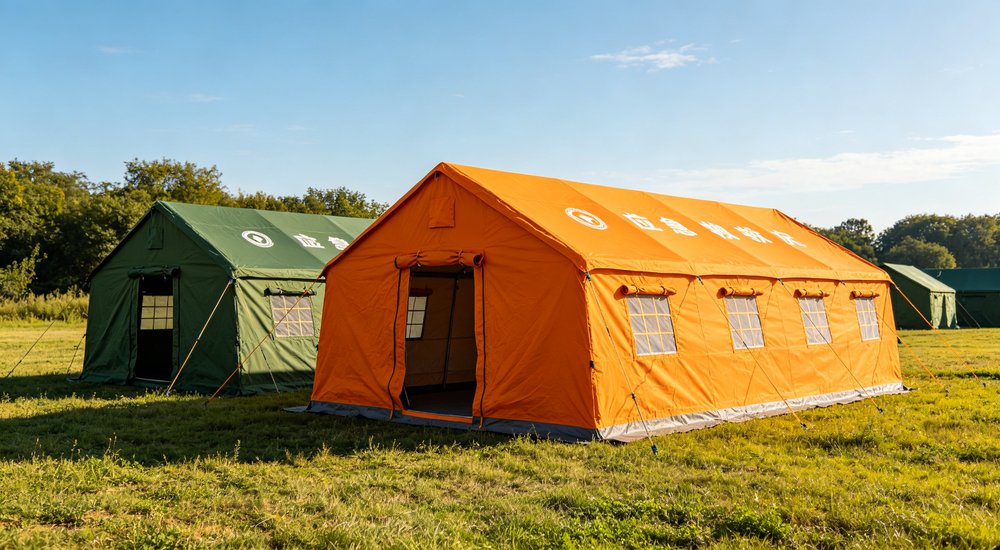

Single Layer Frame Tents: Structure, Pros, Cons & Best Use

What is a Single Layer Frame Tent?

A single layer frame tent consists of one fabric outer canopy stretched over a steel or aluminum frame. There is no insulation layer and no inner lining. The fabric is typically 600D-900D polyester or PVC-coated polyester with a waterproof rating of 2000mm-3000mm. This is the simplest and most traditional emergency tent construction.

Advantages of Single Layer Tents

• Lowest cost: Approximately 40-50% cheaper than insulated equivalents. Canvas tent and polyester options available, making them ideal for large-quantity emergency procurement
• Lightest weight: Easy to transport and deploy in remote areas with limited logistics
• Best ventilation: Single layer allows maximum airflow, critical in tropical climates where heat and humidity are the primary concerns
• Fastest setup: No inner tent to install, reducing deployment time by 30-50%
• Lowest condensation: Single layer allows moisture to escape directly, reducing mold and mildew risk
• Simple maintenance: Fewer components means fewer things to repair or replace

Disadvantages of Single Layer Tents

• No insulation: Interior temperature closely matches exterior temperature. In cold climates, these tents require external heating which is inefficient and potentially dangerous
• Not suitable for winter: Below 10°C, single layer tents become uncomfortable for long-term occupancy
• Limited noise reduction: Rain and wind noise is more noticeable without insulation layers
• Less privacy: Thin fabric allows light and shadows to pass through

Best Use Cases for Single Layer Tents

• Tropical and subtropical disaster relief tent deployments (Southeast Asia, Central America, Central Africa)
• Short-term emergency shelter (days to weeks)
• Medical triage and first aid stations in warm climates
• Humanitarian distribution centers
• Refugee camps in warm regions
• Events and temporary warehousing

Single Layer Price Reference

Size	Weight	Setup Time	Reference Price
12m² (3x4m)	25-30 kg	10-15 min	$150-$250
20m² (4x5m)	35-45 kg	15-20 min	$250-$400
30m² (5x6m)	50-60 kg	20-25 min	$350-$500

Reference wholesale pricing (FOB Shenzhen, 2026 guide). Actual quotation varies by raw material costs, order quantity, customization, and shipping.

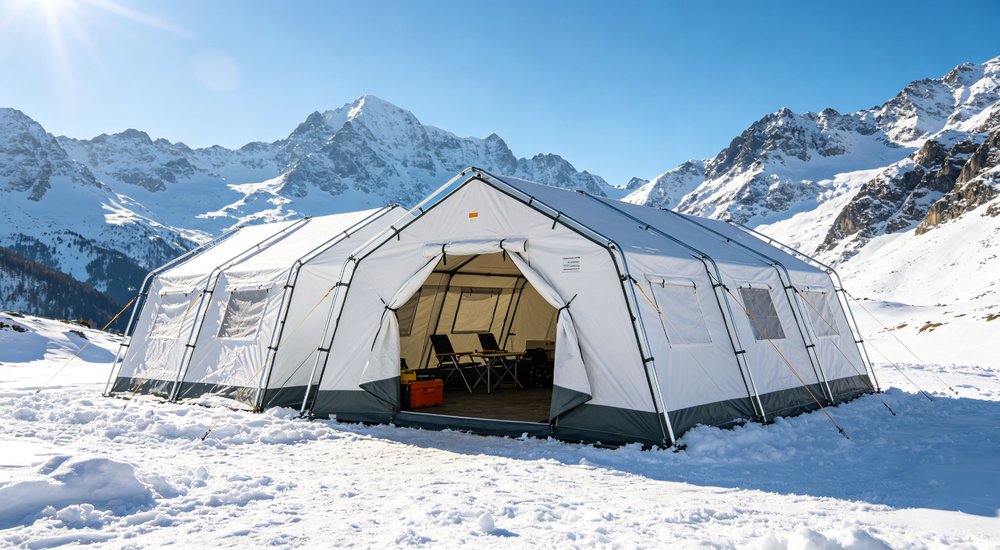

Integrated 3-Layer Frame Tents: Structure, Pros, Cons & Best Use

What is an Integrated 3-Layer Frame Tent?

An integrated 3-layer frame tent (also called "fixed 3-layer" or "sandwich construction") has the outer fabric, insulation layer (typically 5-10mm foam or cotton batting), and inner lining fabric permanently sewn or heat-welded together as one single piece. The insulation cannot be removed. The entire canopy goes up as one unit over the frame.

Advantages of Integrated 3-Layer Tents

• Fixed insulation: Cannot be lost, misplaced, or forgotten during deployment — critical for emergency situations where equipment management is chaotic
• Good thermal performance: 5-10mm insulation provides R-value 2.0-3.5, reducing heating costs by 40-60% compared to single layer
• Simple setup: Only one canopy piece to install, no separate inner tent to align and attach
• Uniform appearance: No gaps, wrinkles, or misalignment between layers
• Better noise reduction: Insulation layer dampens rain and wind noise by 30-40%
• Lower condensation than expected: Modern integrated designs include ventilation channels between layers

Disadvantages of Integrated 3-Layer Tents

• Cannot remove insulation: In summer or warm climates, the tent becomes hot and stuffy. You pay for insulation you cannot use
• Heavier than single layer: Approximately double the weight due to insulation and inner lining
• More expensive: 60-80% more expensive than single layer equivalents
• Layer damage = whole tent: If the outer fabric tears, you cannot replace just the outer layer — the entire 3-layer canopy must be replaced
• Limited ventilation: Fixed layers restrict airflow, requiring more active ventilation management
• Slower drying: If moisture gets between layers, it can be difficult to dry completely, increasing mold risk

Best Use Cases for Integrated 3-Layer Tents

• Winter emergency response in cold climates (Northern Europe, Russia, Central Asia, high-altitude regions)
• Permanent or long-term refugee camps in cold regions
• Military field hospitals and command posts in winter operations
• Disaster response in earthquake zones with cold winters (Turkey, Syria, Nepal highlands)
• Fixed medical facilities where temperature control is critical year-round

Integrated 3-Layer Price Reference

Size	Weight	Setup Time	Reference Price
12m² (3x4m)	50-60 kg	20-25 min	$300-$450
20m² (4x5m)	70-90 kg	25-35 min	$450-$650
30m² (5x6m)	100-120 kg	30-40 min	$600-$850

Reference wholesale pricing (FOB Shenzhen, 2026 guide). Actual quotation varies by raw material costs, order quantity, customization, and shipping.

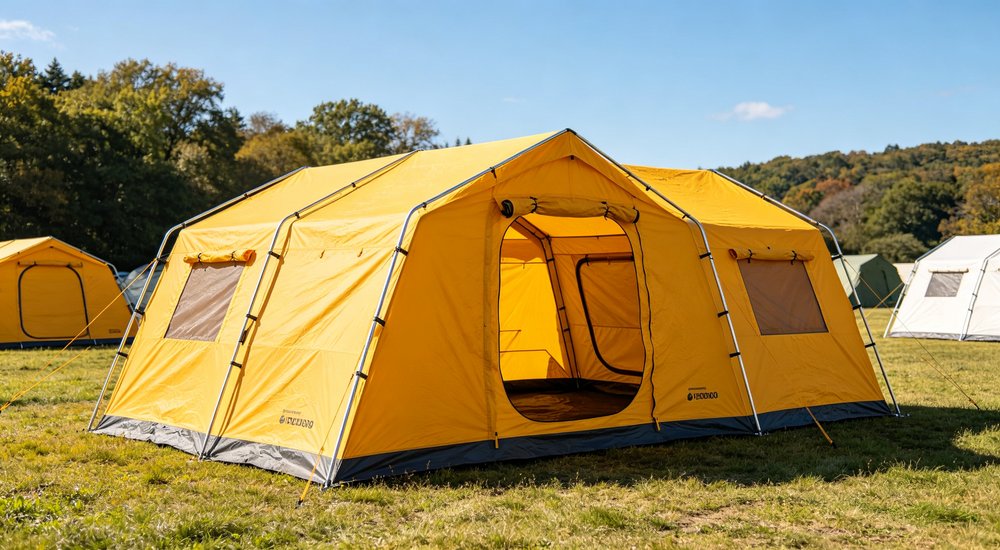

Detachable 3-Layer Frame Tents: Structure, Pros, Cons & Best Use

What is a Detachable 3-Layer Frame Tent?

A detachable 3-layer frame tent (also called "removable liner" or "2-piece 3-layer") consists of two separate pieces: an outer tent (waterproof canopy + frame) and an insulated inner tent (insulation layer + inner lining, sewn together as one piece). The inner tent hangs inside the outer tent using hooks, Velcro, or ties, and can be completely removed when not needed. This detachable liner system is the key difference from integrated construction. This creates an air gap between the outer and inner layers for additional thermal performance.

Advantages of Detachable 3-Layer Tents

• Year-round versatility: Use outer tent alone in summer (excellent ventilation), add removable inner insulated liner in winter (superior warmth). One tent serves all seasons
• Best thermal performance: The air gap between outer and inner layers creates an additional insulation barrier, achieving R-value 2.5-4.5 — better than integrated 3-layer
• Independent layer replacement: If the outer fabric tears, replace only the outer. If the inner gets damaged, replace only the inner. Reduces long-term maintenance cost by 50%
• Superior condensation control: Air gap allows moisture to circulate and escape, preventing the mold problems common in integrated designs
• Flexible deployment: Inner tent can be installed after the outer is up, allowing shelter to be established quickly then upgraded for cold
• Easy cleaning: Inner lining can be removed and washed separately
• Upgrade path: Organizations can start with outer tents only, then purchase inner liners as budget allows

Disadvantages of Detachable 3-Layer Tents

• Highest cost: 10-15% more expensive than integrated 3-layer due to separate hardware and manufacturing
• Heaviest total weight: Two separate pieces mean more total material and hardware
• Longest setup time: Outer tent first, then inner tent installation adds 10-15 minutes
• More storage space: Requires two separate storage bags (outer + inner)
• Inner tent can be misplaced: In chaotic emergency situations, the separate inner tent can be lost or left behind during deployment
• Potential for gaps: If inner tent is not properly installed, gaps can reduce thermal performance

Best Use Cases for Detachable 3-Layer Tents

• Most popular choice for NGOs and UN agencies operating across multiple climate zones
• Disaster response organizations that deploy globally (IFRC, MSF, ICRC)
• Military units that need tents for both desert and mountain operations
• Field hospitals requiring temperature control in all seasons
• Refugee camps in regions with extreme temperature variation (Middle East, Central Asia)
• Organizations with multi-year programs requiring long-term tent value

Detachable 3-Layer Price Reference

Size	Weight (Total)	Setup Time	Reference Price
12m² (3x4m)	55-70 kg	25-35 min	$350-$500
20m² (4x5m)	80-100 kg	30-45 min	$500-$750
30m² (5x6m)	110-135 kg	40-55 min	$650-$950

Reference wholesale pricing (FOB Shenzhen, 2026 guide). Actual quotation varies by raw material costs, order quantity, customization, and shipping.

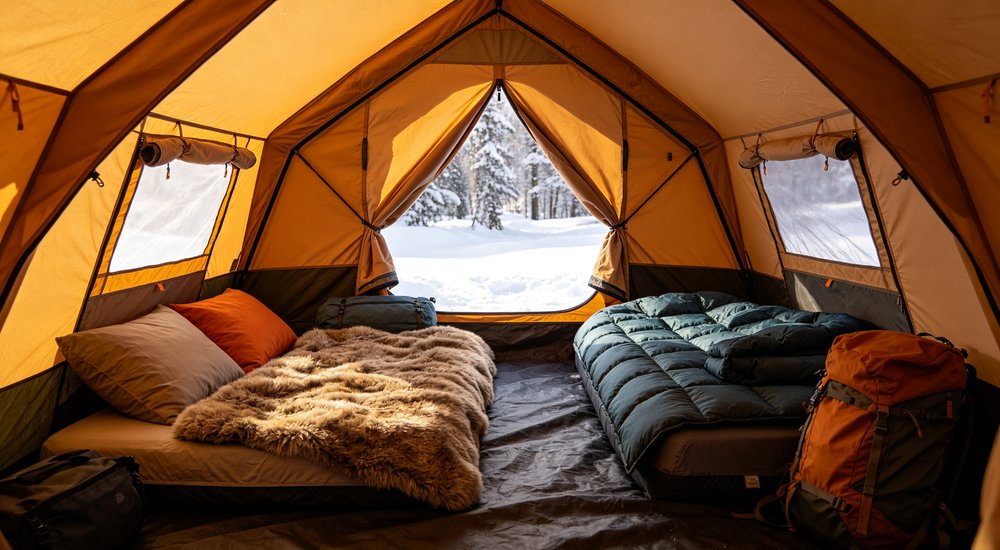

Insulation & Thermal Performance: Head-to-Head Comparison

Thermal performance is the most critical difference between these three construction types. The table below shows expected interior temperatures at various exterior temperatures, assuming no additional heating:

Exterior Temp	Single Layer Interior	Integrated 3-Layer Interior	Detachable 3-Layer Interior
35°C (hot summer)	38-40°C (hot)	40-43°C (very hot)	36-38°C (warm, with inner removed = 35-37°C)
20°C (mild)	19-21°C	20-22°C	20-22°C
0°C (cold)	-2 to 2°C (freezing)	5-8°C (cold)	7-10°C (cool)
-10°C (very cold)	-12 to -8°C (dangerous)	0-3°C (very cold)	2-5°C (cold)
-20°C (extreme)	-22 to -18°C (life-threatening)	-8 to -5°C (dangerous)	-5 to -2°C (very cold, needs heating)

Key insight: At -10°C exterior, a single layer tent drops to -12°C inside — dangerous for human occupancy. An integrated 3-layer maintains 0-3°C, and a detachable 3-layer maintains 2-5°C. Below -15°C, all three types require additional heating, but insulated tents reduce heating fuel consumption by 50-70%.

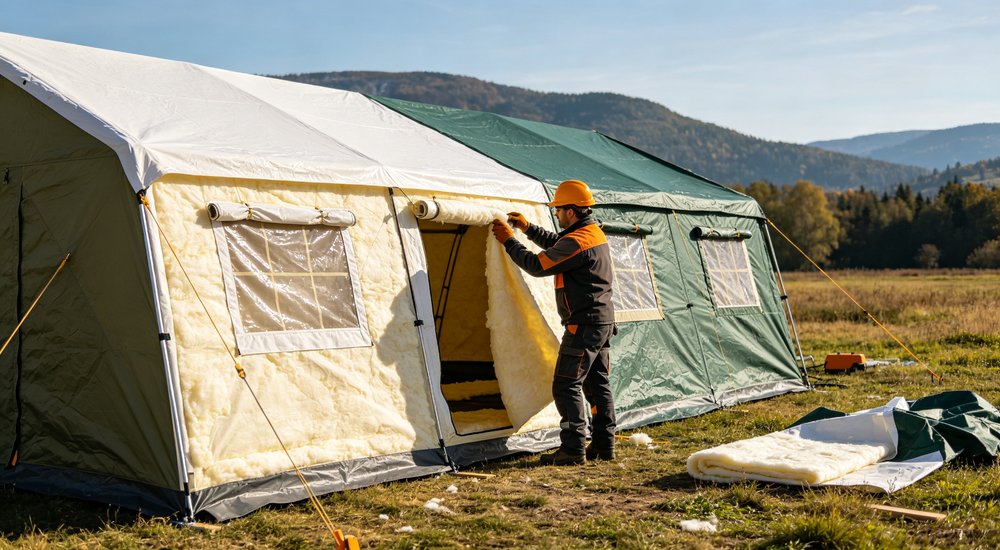

Insulation Materials Used

• Polyester cotton batting (3-5mm): Most common, cost-effective, R-value 1.5-2.5
• EPE foam (5-10mm): Better water resistance, R-value 2.0-3.5
• Needle-punched cotton (8-15mm): Premium option for extreme cold, R-value 3.0-5.0. Cotton tent and canvas tent constructions use this insulation for superior breathability and warmth.
• Aluminum foil reflective layer: Optional addition that reflects body heat back, improving warmth by 15-20%

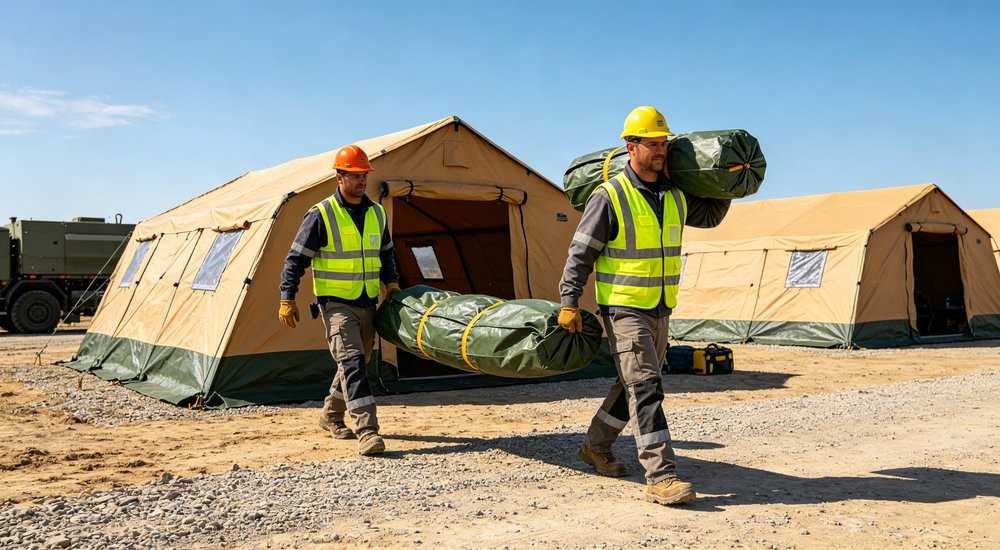

Weight, Shipping & Storage Comparison

Weight directly affects shipping costs, especially for large orders. A 100-tent order can weigh 3-13 tons depending on construction type. Insulated frame tents are significantly heavier than single layer models, which impacts both freight costs and the number of tents that fit in a standard shipping container. For organizations managing global logistics, understanding these weight differences is critical for budget planning and deployment scheduling. Thermal tent constructions with thick insulation may require specialized handling equipment at warehouses and distribution centers.

Factor	Single Layer	Integrated 3-Layer	Detachable 3-Layer
20m² tent weight	35-45 kg	70-90 kg	80-100 kg
100 tents total weight	3.5-4.5 tons	7-9 tons	8-10 tons
20ft container capacity	~300 tents	~150 tents	~130 tents
Storage bag count	1 bag	1 bag	2 bags (outer + inner)
Storage volume (20m²)	0.15 m³	0.25 m³	0.30 m³
Air freight cost index	1.0x (baseline)	2.0x	2.3x
Sea freight cost index	1.0x	1.8x	2.0x

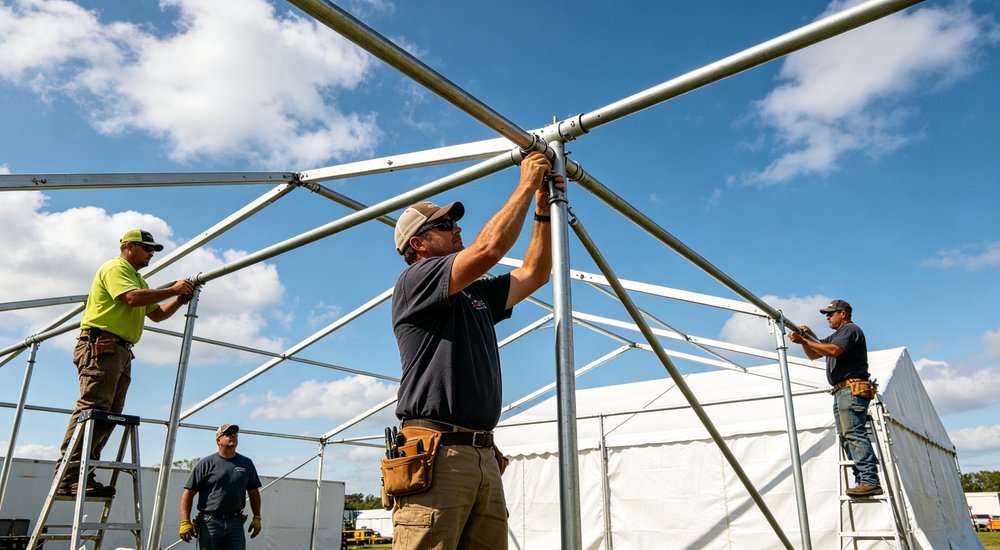

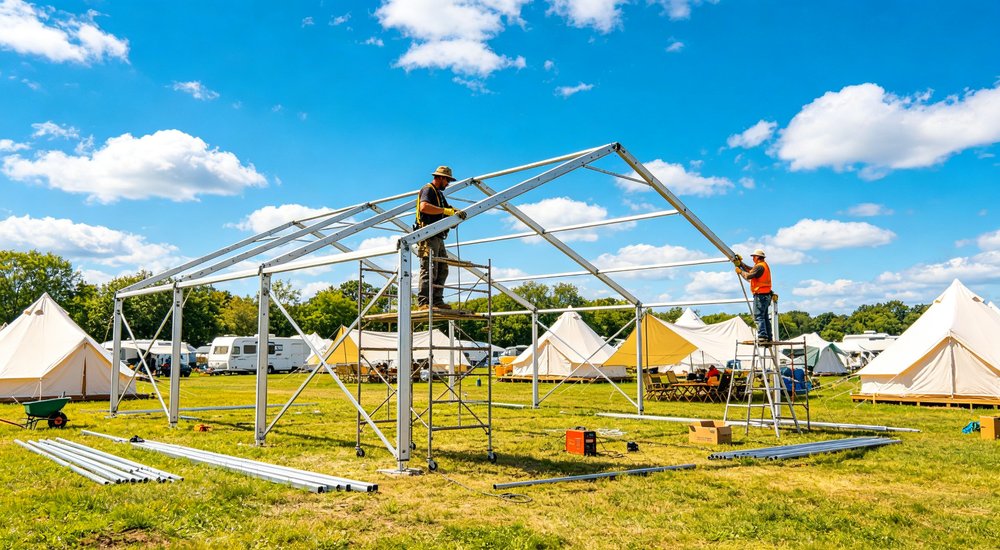

Setup Time & Maintenance Comparison

Setup time varies significantly by construction type, with single layer tents being the fastest and detachable 3-layer requiring the most time. Maintenance complexity also differs: integrated 3-layer tents require checking for delamination between bonded layers, while detachable systems allow independent layer inspection and replacement. For cold weather tent deployments, proper maintenance of insulation integrity is critical — even small gaps or tears can reduce thermal performance by 20-30%.

Task	Single Layer	Integrated 3-Layer	Detachable 3-Layer
Frame assembly	10-15 min	10-15 min	10-15 min
Outer canopy install	5-10 min	10-15 min (heavier)	5-10 min
Inner tent install	N/A	N/A (integrated)	10-15 min
Total setup (2 people)	15-20 min	25-35 min	30-45 min
Annual maintenance	Clean + inspect	Clean + inspect + check delamination	Clean both layers + inspect hooks/Velcro
Repair complexity	Simple (patch kit)	Complex (3-layer patch)	Moderate (replace layer)
Average service life	3-5 years	5-7 years	7-10 years (layers replaceable)

Price & Total Cost of Ownership (5-Year TCO)

Purchase price is only part of the equation. Total Cost of Ownership (TCO) includes heating fuel, maintenance, repairs, and replacement over the tent's service life:

Cost Factor (20m², 5 years)	Single Layer	Integrated 3-Layer	Detachable 3-Layer
Purchase price	$300	$550	$620
Heating fuel (cold climate)	$800 (high consumption)	$350	$280
Maintenance & repairs	$100	$150	$80 (replaceable layers)
Replacement (if needed)	$300 (whole tent)	$550 (whole tent)	$150 (one layer only)
5-Year TCO (cold climate)	$1,500	$1,050	$950
5-Year TCO (warm climate)	$400	$700	$700

Climate & Scenario Recommendations

For organizations needing a winter tent for sub-zero operations, insulated constructions are essential. For year-round deployments across multiple climates, an all weather tent with detachable layers offers maximum versatility.

Climate / Scenario	Recommended Construction	Why
Tropical (year-round >25°C)	Single Layer	Maximum ventilation, lowest cost, no insulation needed
Subtropical (mild winter 10-20°C)	Single Layer or Detachable	Single layer sufficient; detachable if occasional cold snaps
Temperate (winter 0-10°C)	Detachable 3-Layer	Remove inner in summer, add in winter; best versatility
Cold (winterized -10 to 0°C)	Detachable or Integrated 3-Layer	Both work; detachable preferred for year-round use
Extreme cold (winter <-10°C)	Integrated 3-Layer (thick insulation, winterized)	Fixed insulation cannot be misplaced; choose 10-15mm batting for winterized performance
High altitude (>3000m)	Integrated 3-Layer	Rapid temperature drops; fixed insulation is reliable
Medical facility (all climates)	Detachable 3-Layer	Temperature control critical; inner can be removed for sterilization
Short-term response (<1 month)	Single Layer	Fast deployment, low cost, adequate for short periods
Long-term camp (>6 months)	Detachable 3-Layer	Lowest TCO, layer replacement extends service life
Multi-region deployment	Detachable 3-Layer	One tent type works globally; standardize inventory

Customization Options by Construction Type

All three construction types support extensive customization, but some options are only available on specific constructions. 4 season tent configurations with reinforced frames and extra-thick insulation are typically only offered in integrated or detachable 3-layer formats. Logo printing, color choices, and window configurations are available across all types. Detachable 3-layer tents offer the unique advantage of allowing organizations to start with outer tents only, then purchase removable liner tent upgrades as budgets allow.

Customization	Single Layer	Integrated 3-Layer	Detachable 3-Layer
Logo printing	✅ Yes	✅ Yes (outer only)	✅ Yes (outer only)
Color choice	✅ 20+ colors	✅ Outer color choice	✅ Outer + inner color choice
Insulation thickness	❌ N/A	✅ 5-15mm fixed	✅ 5-15mm removable
Window configuration	✅ Fully customizable	✅ Customizable	✅ Customizable (both layers)
Connection tunnels	✅ Yes	✅ Yes	✅ Yes
Floor inclusion	✅ Optional	✅ Optional	✅ Optional (integrated with inner)
Stove jack / heating port	✅ Optional	✅ Reinforced	✅ Reinforced (both layers)
Inner tent only (upgrade later)	❌ Not compatible	❌ N/A	✅ Purchase inner separately

Customization	Single Layer	Integrated 3-Layer	Detachable 3-Layer

Procurement Decision Guide: 5 Steps to Choose the Right Construction

How do you decide which construction is right for your program? Follow this 5-step process:

Step 1: Map Your Deployment Climates

List all regions where your organization operates. If 70%+ are warm/tropical, single layer is likely best. If you operate across both warm and cold regions, detachable 3-layer is the standard choice. If exclusively cold, integrated 3-layer is simplest.

Step 2: Calculate Your Heating Budget

In cold climates, heating fuel is often the largest ongoing cost. A single layer tent consumes 2-3x more heating fuel than an insulated tent. Over 5 years, the fuel savings alone can pay for the upgraded tent.

Step 3: Assess Deployment Duration

Short-term deployments (weeks to months) favor single layer for speed and cost. In rapid-onset disasters where tents are needed for 2-12 weeks, single layer can be deployed 30% faster and costs 50% less, making it the pragmatic choice. Long-term camps (6+ months) favor detachable 3-layer for comfort and low TCO. For multi-year programs, the layer-replacement capability of detachable construction extends service life to 7-10 years, compared to 3-5 years for single layer.

Step 4: Evaluate Logistics Capacity

Detachable 3-layer tents are heaviest and bulkiest — a 20m² unit weighs 80-100kg in two separate bags, compared to 35-45kg for single layer. If your logistics chain is strained (remote areas, limited transport, last-mile delivery by small vehicles), single layer may be the practical choice despite climate considerations. For air freight deployments, the weight difference is critical: 100 detachable tents cost 2.3x more to ship than 100 single layer tents. Always factor total delivered cost, not just unit price.

Step 5: Plan for Layer Standardization

Choosing one construction type across your entire fleet simplifies training, spare parts inventory, and maintenance. Most large organizations standardize on detachable 3-layer for global versatility.

Related products: Learn more: 12m² Standard Frame Tent | Explore: 20m² Large Frame Tent | Compare: Heavy Duty Canvas Tent | View: Medical Support Tent | See also: Field Hospital Tents — all available in single layer, integrated 3-layer, and detachable 3-layer constructions.

Scenario pages: Disaster Relief Tents | Refugee Camp Tents | Military Field Tents

Common procurement mistake: Buying single layer tents for cold climate programs to save upfront cost. The resulting heating fuel costs and occupant discomfort make this the most expensive option over time. Always calculate 5-year TCO before deciding.

Quick Comparison Summary

Factor	Single Layer	Integrated 3-Layer	Detachable 3-Layer
Best for	Tropical, short-term	Cold, permanent	All climates, long-term
Weight (20m²)	35-45 kg	70-90 kg	80-100 kg
Setup time	15-20 min	25-35 min	35-45 min
Price range	$150-$350	$300-$550	$350-$650
Service life	3-5 years	5-7 years	7-10 years
Winter use	Not recommended	Excellent	Excellent
Layer replacement	N/A	Cannot replace	Independent replacement

Real-World Deployment Examples

Understanding how humanitarian organizations and medical clinic operators actually use these constructions in the field helps clarify which choice is right for your program:

Case 1: Tropical Disaster Response — Single Layer

A Southeast Asian disaster response agency deployed 500 single layer 12m² tents after a major flood. The lightweight tents were airlifted within 48 hours, set up by local volunteers in 15 minutes each, and provided adequate shelter in 30°C+ temperatures. Total cost: $75,000. The same order in detachable 3-layer would have cost $250,000 and weighed 3x more, delaying deployment by a week.

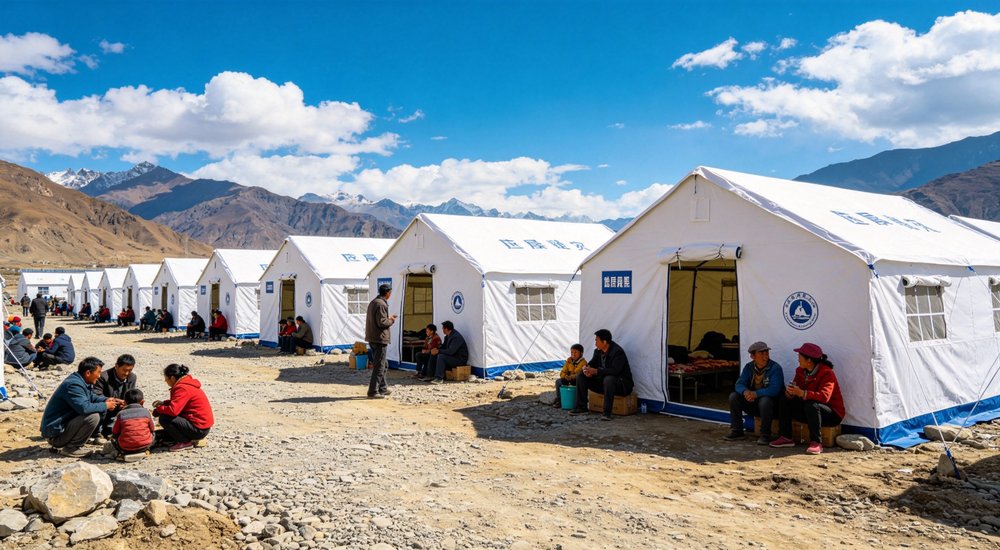

Case 2: Winter Refugee Camp — Detachable 3-Layer

A UN agency operating a refugee camp in a mountainous region with -15°C winters chose detachable 3-layer 20m² tents. In summer, inner liners were removed for ventilation; in winter, they were reinstalled for warmth. Over 5 years, only 15% of outer tents needed replacement due to wear, while inner liners were washed and reused annually. Total 5-year cost per tent: $950, compared to $1,500 for single layer with heating fuel.

Case 3: High-Altitude Medical Clinic — Integrated 3-Layer

A medical NGO operating a permanent field clinic at 3,500m altitude chose integrated 3-layer tents with 15mm needle-punched cotton insulation. The fixed insulation cannot be misplaced by rotating staff, and the reinforced construction withstands 120km/h winds. Interior temperatures maintained at 18-22°C even when exterior dropped to -20°C, with only a small wood stove for supplementary heating.

Frequently Asked Questions

What is the difference between single layer and 3-layer tents?

Single layer tents have only one waterproof fabric layer over the frame with no insulation. 3-layer tents add an insulation layer (foam or cotton batting) and an inner lining, either sewn together (integrated) or as a separate removable piece (detachable). The insulated construction provides significantly better thermal insulation for cold climates.

Why do some suppliers call it "2-layer" while others call it "3-layer"?

This is the most common terminology confusion in the industry. Physically, an insulated tent has three material layers: outer fabric, insulation (foam or cotton), and inner lining. Some suppliers call this "2-layer" because they treat the outer-fabric-with-insulation as one composite piece, plus the inner lining as the second layer. Both terms describe the same product. We use "3-layer" because it accurately describes the three physical material layers. Always ask for the material breakdown rather than relying on the layer count name.

Which is warmer: integrated 3-layer or detachable 3-layer?

Detachable 3-layer is typically 1-3°C warmer because the air gap between the outer and inner layers creates an additional insulation barrier. Integrated 3-layer has the insulation directly bonded to the fabric, which is slightly less thermally efficient but simpler to set up.

Can I add an inner liner to a single layer tent later?

Generally no. Single layer tents are not designed with the attachment points (hooks, Velcro, ties) needed for an inner liner. If you might need insulation later, purchase detachable 3-layer tents from the start — you can always use just the outer tent in warm weather.

How much more does a 3-layer tent cost compared to single layer?

Integrated 3-layer costs approximately 60-80% more than single layer. Detachable 3-layer costs approximately 80-100% more. However, in cold climates, the heating fuel savings over 3-5 years typically offset the higher purchase price.

Do 3-layer tents have condensation problems?

Integrated 3-layer tents can have condensation issues if not properly ventilated, because moisture can become trapped between the bonded layers. Detachable 3-layer tents have fewer condensation problems because the air gap allows moisture to circulate and escape. All tent types require proper ventilation management.

Which construction does the UN and NGOs prefer?

Most UNHCR, IFRC, MSF, and ICRC standardize on detachable 3-layer tents for global deployment. This allows them to use one tent type across all climate zones, removing the inner in summer and adding it in winter. Single layer is used for specific tropical programs.

How long does each construction type last?

Single layer: 3-5 years with proper maintenance. Integrated 3-layer: 5-7 years (delamination of bonded layers is the main failure mode). Detachable 3-layer: 7-10 years because individual layers can be replaced, extending the overall service life significantly.

Can the inner tent of a detachable 3-layer be washed?

Yes. The insulated inner tent can be removed and cleaned separately, which is a major advantage for medical facilities and long-term camps where hygiene is critical. Integrated 3-layer tents cannot be disassembled for thorough cleaning.

What insulation material is best for extreme cold?

For temperatures below -15°C, choose 10-15mm needle-punched cotton insulation with an optional aluminum foil reflective layer. This combination provides the highest R-value (3.5-5.0) and is used in Arctic and high-altitude programs. EPE foam is a good mid-range option for -5 to -15°C.

Are 3-layer tents too hot for summer use?

Integrated 3-layer tents can become uncomfortably hot in summer because the fixed insulation traps heat. Detachable 3-layer tents solve this by allowing the inner tent to be completely removed, converting it into a single layer tent with excellent ventilation. This is the primary advantage of detachable construction.

How much heavier are 3-layer tents for shipping?

A 20m² integrated 3-layer tent weighs approximately 70-90kg vs 35-45kg for single layer — about double. Detachable 3-layer weighs 80-100kg. For a 100-tent order, this means 7-10 tons vs 3.5-4.5 tons, significantly affecting sea and air freight costs.

Can I mix construction types in one order?

Yes. Many organizations order a mix: single layer for tropical programs and detachable 3-layer for cold climate programs. However, standardizing on one type simplifies training, spare parts, and maintenance. We can advise on the optimal mix based on your deployment map.

What happens if the outer tent tears on a detachable 3-layer?

You can replace only the outer tent canopy while keeping the insulated inner tent, saving 40-50% compared to replacing the entire tent. This is a major long-term cost advantage of detachable construction. On integrated 3-layer, a tear in the outer fabric requires replacing the entire 3-layer canopy.

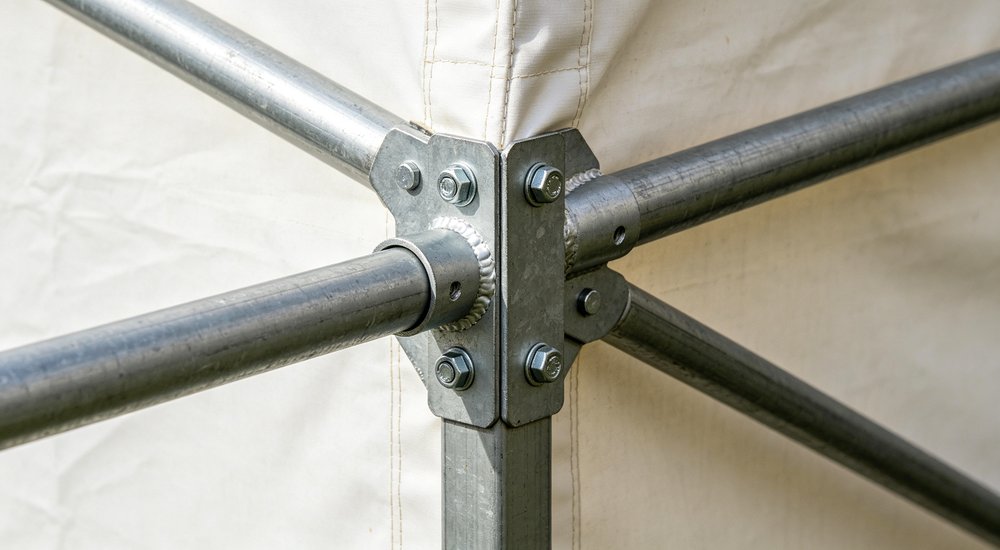

Do all three types use the same frame?

Yes, all three construction types use the same steel or aluminum frame system. The difference is only in the canopy construction. This means you can potentially upgrade from single layer to detachable 3-layer by purchasing new canopies if your frames are compatible (frame dimensions must match).

Which construction is best for medical use?

Detachable 3-layer is preferred for medical facilities because:

(1) temperature can be regulated by adding/removing the inner,

(2) the inner lining can be removed for cleaning and sterilization,

(3) individual layers can be replaced if contaminated, and

(4) the air gap reduces condensation that could compromise sterile environments.

What is the minimum order quantity for each type?

Minimum order is typically 50 tents for single layer and 30 tents for 3-layer constructions. However, we can accommodate smaller trial orders for evaluation purposes. Larger orders (500+ tents) qualify for volume discounts of 10-20%.

Can I get a sample tent before placing a large order?

Yes, we recommend ordering 1-2 sample tents of each construction type you are considering. Test them in your actual deployment climate for 2-4 weeks before committing to a large order. Sample costs are typically credited toward bulk orders.

What certifications apply to these tents?

All three construction types can be certified to ISO 9001 (quality management), CE (European safety), and flame retardant standards (BS 5438 / CPAI-84). 3-layer tents can additionally be certified for thermal performance (R-value testing) and cold climate performance. We provide test reports with all shipments.

Key Takeaways

• Single layer = best for warm climates, short-term deployments, and tight budgets. Lowest cost, lightest weight, best ventilation, but no insulation.
• Integrated 3-layer = best for exclusively cold climates where insulation must never be missing. Fixed warmth, simple setup, but cannot remove insulation in summer.
• Detachable 3-layer = best for year-round global deployment and the lowest 5-year TCO in cold climates. Most popular choice for NGOs and military. Highest upfront cost but best long-term value.
• Always calculate 5-year TCO — heating fuel savings often make insulated tents cheaper than single layer in cold climates despite higher purchase price.
• Standardize on one construction type across your fleet to simplify training, spare parts, and maintenance. As a direct manufacturer offering wholesale pricing, we can supply any construction type at scale.

Request a Proposal for Your Tent Construction

Whether you need humanitarian tent supplies for refugee camps, medical shelters for disaster response, or operational shelters for military deployments, choosing the right construction type ensures occupant comfort and long-term cost efficiency. As a direct factory with OEM capability, we offer flexible MOQ starting from 50 units. Our team can provide side-by-side samples of all three constructions for evaluation before you commit to a large order.

Not sure which construction type is right for your program? Share your deployment regions, expected duration, and budget, and we will recommend the optimal construction mix with detailed pricing. As a China-based tent manufacturer with 20+ years of emergency shelter experience, we supply all three construction types at wholesale tent pricing to UN agencies, NGOs, and military organizations worldwide.

Response time: 24 hours | Emergency delivery: 7-10 days (buffer stock) | Production capacity: 2,000+ tents/month

After-sales support: 2-year warranty on frames, 1-year warranty on fabric, free replacement parts for first year, and dedicated technical support for setup and maintenance. Spare parts kits (zippers, poles, patches) available for all tent models

Final Verdict

If you operate in one warm climate zone, choose single layer. If you operate exclusively in cold regions, choose integrated 3-layer. If you deploy across multiple climates or need the best long-term value, choose detachable 3-layer — it is the most versatile, has the lowest total cost of ownership in cold climates, and is the standard choice for the world's leading emergency response organizations. With 20+ years of manufacturing experience as a direct tent manufacturer, we supply wholesale emergency shelters to organizations in 40+ countries. We can help you select the right construction for every program in your portfolio.

What to include in your inquiry:

• Quantity needed
• Deployment country and climate
• Preferred configuration
• Logo or branding requirements
• Required delivery date
• Any certification requirements for tender

✅ Explore our full lineup of emergency frame tents for disaster relief bulk procurement. Multiple sizes available for field command centers, medical triage and temporary refuge. Click to browse all models, download specs and get your bulk quotation.
